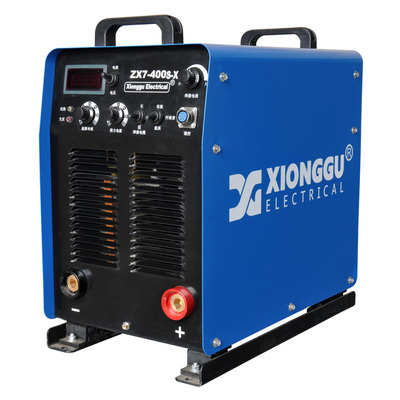

ZX7-400S-X IGBT Inverter Welder
Function:
SMAW (cellulose electrode), SMAW (low hydrogen electrode), DC GTAW (lift arc).
Features:
Dust-proof, sand-proof, water-proof and vibration-proof, good environmental adaptability.
Digital preset and display of welding current.
Soft switching IGBT inverter, high efficiency and energy saving.
Suitable for long cable welding.
EMC design, good electromagnetic compatibility.
Main Technical Parameters
With continuous progress of technology, appearance, color and parameters may be changed.The parameters are just for reference,and is not taken as the standard of inspection for acceptance.
Model | ZX7-400S-X |
Product ID | 4020510000 |
Input Power Supply | 3phase 380V±25% 50/60Hz |
Rated Input Power | 18kVA |
Rated Input Current | 27A |
Rated Output Current/Voltage | 400A/36V |
Rated Duty Cycle | 60% |
Output Current | 40~400A |
Open-Circuit Voltage | 74V |
Cooling | Air cooling |
Ambient Temperature | -40~55℃ |
Altitude | 4000m |
Ingress Protection | IP23 |
Weight | 32kg |
Dimensions(W×L×H) | 288mm×478mm×460mm |
