Function:SMAW(cellulose electrode), SMAW (low hydrogen electrode), GTAW (HF), GTAW (liftarc).
Features:
High performance DSP chip is used for power source and arc control to improveproduct consistency.
Good human computer interactive display,convenient unified regulation,and many groups of process parameters are stored for calling.
Key lock protection function, comprehensive welding data managementfunction.
Stable arc striking without loss and high success rate of arc striking.
Both lift arc and HF is designed to strike arc when GTAW process isapplied, lift arc does not generate high frequency voltage and has noelectromagnetic interference.
More stable and reliable HF arc striking, less electromagneticinterference, no HF discharge black spot.
Strong arc force and little spatters when SMAW process (celluloseelectrode) is applied, strong adaptation to welding cables of various lengths.
Stable arc at current 40A when SMAW process (cellulose and low hydrogenelectrode) is applied.
Main Technical Parameters
With continuous progress of technology, appearance, color and parameters may be changed.The parameters are just for reference,and is not taken as the standard of inspection for acceptance.

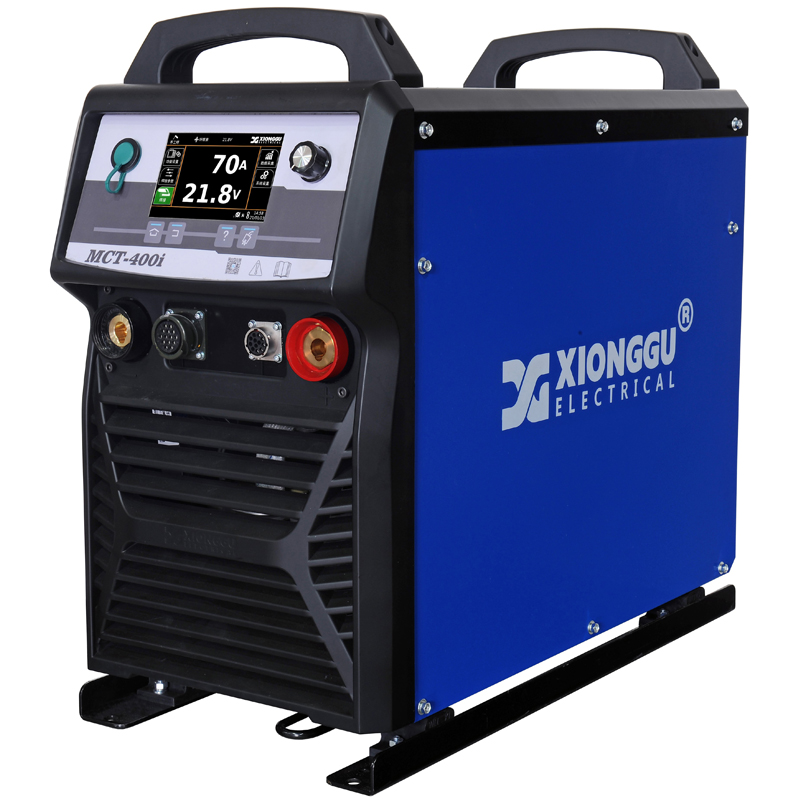

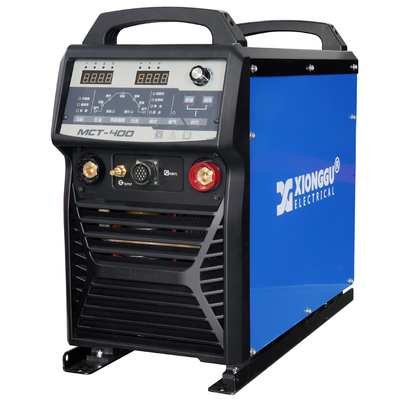

Model | MCT-400i | MCT-400 |
Product ID | 4048000000 | 4041000000 |
Input Power Supply | 3 phase 380V±10％ 50/60Hz | 3 phase 380V±10％ 50/60Hz |
Rated Input Power | 18kVA | 18kVA |
Rated Input Current | 27A | 27A |
Rated Output Current/Voltage | 400A/36V | 400A/36V |
Rated Duty Cycle | 60％ | 60％ |
Max. Open-Circuit Voltage (Peak) | 94V | 94V |
Current Range | 20~400A | 20~400A |
Cooling | Air cooling | Air cooling |
Ambient Temperature | -40~55℃ | -40~55℃ |
Altitude | 4000m | 4000m |
IP rating | IP23 | IP23 |
Weight | 38kg | 38kg |
Display | LCD | LED |
Data Acquisition System | Yes | No |
Dimensions (W×L×H) | 300mm×575mm×540mm | 300mm×575mm×540mm |
