Function:
Precision short-circuit transfer GMAW with solid carbon steel wire or metal cored wire.
Features:
Precise control of droplet short circuit transfer;
Better control of penetration and heat input;
Little spatters and fumes;
Strong adaptability to extended wire length, stable arc combustion and little spatters;
Stable welding, good arc rigidity, strong penetration, molten weld pool easy to control, good weld forming;
CO2 shielding gas is used for root pass welding with solid carbon steel wire, low cost.
Main Technical Parameters
With continuous progress of technology, appearance, color and parameters may be changed.The parameters are just for reference,and is not taken as the standard of inspection for acceptance.

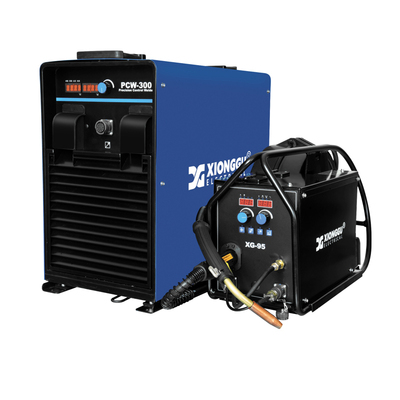

Model | PCW-300 |
Product ID | 4090010000 |
Power Supply | 3 phase 380V±20％ 50/60Hz |
Rated Input Power | 13kVA |
Rated Input Current | 20A |
Rated Output Current/Voltage | 300A/29V |
Rated Duty Cycle | 60% |
Max. Open-Circuit Voltage (Peak) | 66V |
Peak Current | 20~480A |
Basic Current | 20~300A |
Arc Length Regulation | -20~+20（with metal cored wire） |
Cooling | Air cooled |
Ambient Temperature | -40~55℃ |
Altitude | ≤1000m （If the altitude is greater than 1000m, the duty circle will decrease） |
IP Rating | IP23 |
Insulation Grade | F |
Accessories | XG-95 wire feeder, RWG-300 torch. |
Weight | 64kg |
Dimensions (W×L×H) | 350mm×600mm×460mm |
